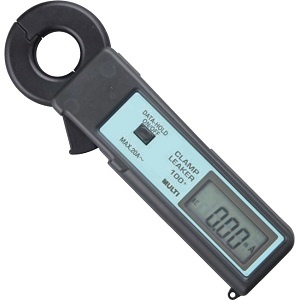

M-100+ Mini AC Leakage Current Clamp Tester18mmφCT, ACA
AC Leakage Current, 30 mA/300 mA/20 A, 18mmφ mini CT
FEATURES
・18mmφCT window and ultra compact size.・Least affection from the external magnetic field.
・The special alloy is used for core material that resists the rust over long period of use and ensures stable,high accurate measurements with very slight influence from aging.
DOWNLOAD
- Instruction Manual ：e-ma-M-100+.pdf
| SPECIFICATIONS | |
|---|---|
| Measuring method | Dual slope integration mode |
| Display | 3.5 digit LCD, max. reading of 3200 |
| Measuring ranges | AC 30 mA/300 mA/20 A |
| Accuracy | 23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy 30/300mA/0.01mA/±1％rdg±10dgt 20A/0.01A/±1％rdg±10dgt |
| Inside diameter of CT | φ18mm |
| Withstanding voltage | AC 2000V/1 minute |
| Over range indication | "OL" mark on LCD |
| Data hold indication | "DH" mark on LCD |
| Low battery indication | "Battery" icon on LCD |
| Sampling rate | 2 times/sec |
| Operating temperature | 0～40℃, < 80%RH (without condensation) |
| Storage temperature | -10～60℃, < 70%RH (without condensation) |
| Power supply | 1.5V (LR-44 or SR-44) battery×2 |
| Dimension | 45(W)×140(H)×20(D)mm |
| Weight | Approx. 80g |
| Accessories | Soft case, Batteries, Instruction manual |
