Infrared Thermometer
PT-3S Infrared Thermometer
FEATURES

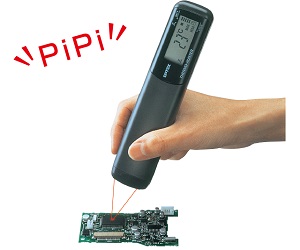

●Compact, lightweight, easy operation. Pen type spot thermometer.●Possible to instantaneously measure the temperature of parts on circuit board, etc.
●Measurement points of φ2.5/25mm can be confirmed with alarm sound and spot beam.
 |
 |
 |
 |
| ø2.5 mm fine spot | Spot marker and alarm notifications | Data sampling with analog output | Pocket-sized pen type |
 |
 |
| Surface temperature measurement of electronic components | Surface temperature measurement of belt |
 |
| SPECIFICATIONS | |
|---|---|
| Temperature Range | 0～200℃ |
| Measurement Area Size | φ2.5/25mm |
| Accuracy | ±3℃ |
| Resolution | 0.1℃ |
| Emissivity Adjustment (ε) | 0.95/0.70 (DIP SW selection) |
| Continuous Measuring Mode | ON/OFF selectable |
| Output | 1mV/℃ |
| Sighting | Red LED spot marker |
| Power Supply | AAA battery×3 |
| Dimension | W38×H175×D25.5mm |
| Weight | 120g |
| Accessory | Output cable, Storage case |
