Clamp type AC Current Sensor／for Low Leakage Current Measurements(ZCT Series)
ZCT-18S Low leakage current measurements with noise proof, AC 0.01mA～20A, φ18mm
FEATURES
Best sensor for low leakage current measurements of less than 1mA.Ultra compact size with 18mmφ jaw opening capability.
High sensitivity and least affection from external magnetic field.
DOWNLOAD

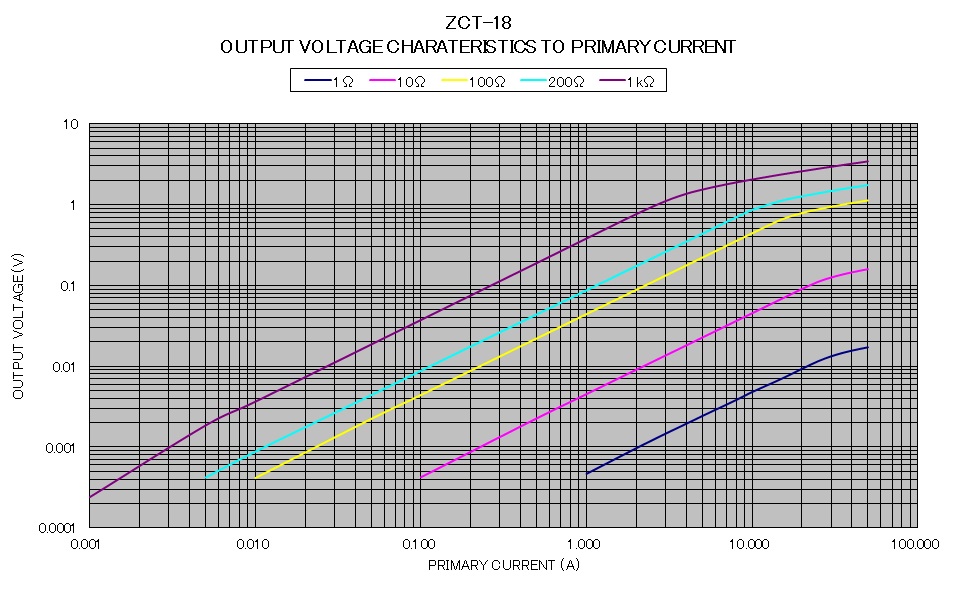

- Output characteristic：e_pe_zct-18s.jpg
| SPECIFICATIONS | |
|---|---|
| Rated Primary Current | AC20A |
| Applicable Current | 0.1mA～20A |
| Max. Capable Current | 30A |
| Secondary Windings | 2200Turns |
| CT Inside Diameter | φ18mm |
| Applicable Frequency | 10Hz～5kHz |
| Output Example | AC45.4mV±2%（10A/10Ω） |
| Recommendable Load Resistor | 1～200Ω |
| Output Part | Lead Wire： Approx. 200mm |
| Rated Voltage | Less than AC600V for low voltage circuit of coated wires |
| Withstanding Voltage | AC2200V/1 minute (between output terminal and CT) |
| Insulation Resistance | More than 100MΩ by 500V insulation tester (between output terminal and CT) |
| Operation Temperature | 0～60℃, less than 80%RH w/o condensation |
| Dimension | 45×101×23mm |
| Weight | Approx. 65g |
